Item Sales Info
Part Number: 7084621600 / Vendor ID Number: 1150641 / Custom:

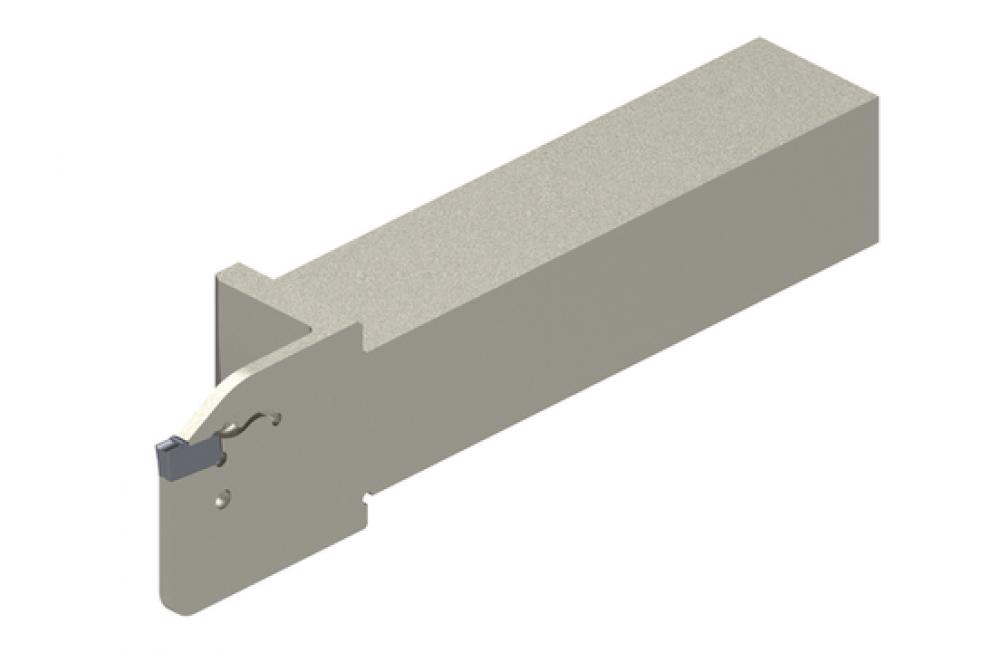

MONO CLAMP EXTERNAL HOLDER SX

MONO CLAMP EXTERNAL HOLDER SX
by Ceratizit

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
E16R0026-1616K-K-SX2
MONO CLAMP EXTERNAL HOLDER SX E16R0026-1616K-K-SX2
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem

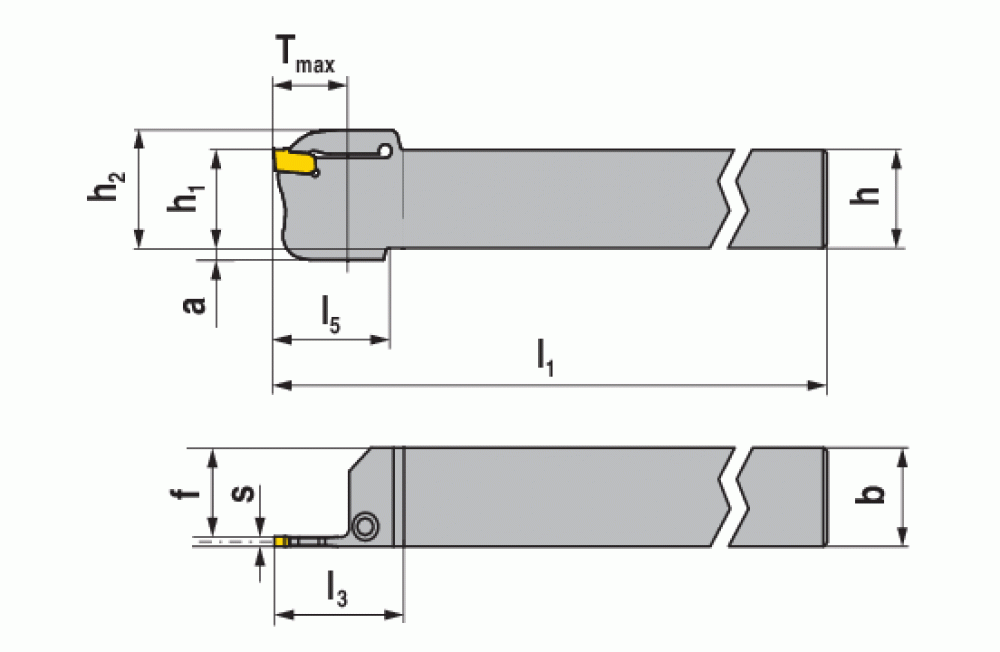

Technical Details
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Holders
Brand Name:
CERATIZIT
cutting depth maximum (inch):
1.024
cutting depth maximum (mm):
26
cutting width (inch):
0.079
Cutting Width (mm):
2
Execution:
RIGHT
For Groove Inserts:
SX .2..
functional width (inch):
0.598
functional width (mm):
15.2
head length (inch):
1.26
head length (mm):
32
ISO Designation:
E16 R 0026-1616K-K-SX2
Item Height (inches):
1.42
Item Length (inches):
5
Item Quantity:
1
Item Weight (lbs):
0.554
Item Width (inches):
1.42
L4 Dimension (inch):
1.299
L4 Dimension (mm):
33
Material group K (H= Main Application, N= Secondar:
0
Material Number:
12381259
overall height (inch):
1.024
overall height (mm):
26
Overall length (inch):
4.921
overall length (mm):
125
Parting off diameter max (inch):
3.15
Parting off diameter max (mm):
80
Product Line:
CERATIZIT_PERFORMANCE
Product name:
MONOCLAMP
shank height (inch):
0.63
shank height (mm):
16
shank width (inch):
0.63
shank width (mm):
16
Manufactured By:
Ceratizit
