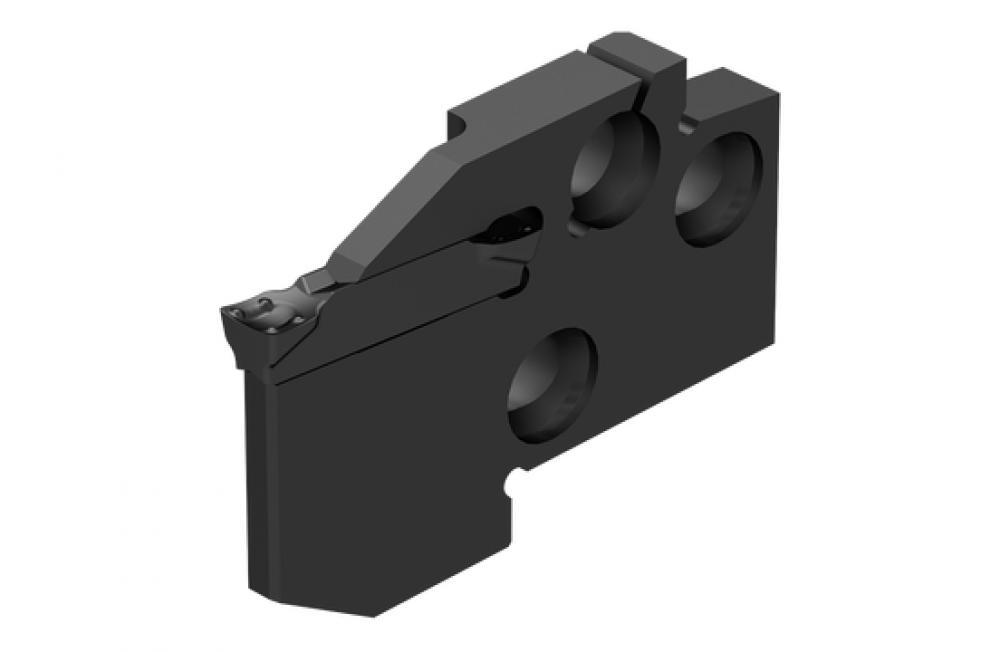

MODULAR CLAMP MSS EXT. GROOVING MODULE

MODULAR CLAMP MSS EXT. GROOVING MODULE
by Ceratizit

Qty
Product Overview
MSS-E25R21-GX24-1
MODULAR CLAMP MSS EXT. GROOVING MODULE MSS-E25R21-GX24-1
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
Technical Details
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Holders
Brand Name:
CERATIZIT
cutting depth maximum (inch):
0.827
cutting depth maximum (mm):
21
cutting width maximum (inch):
0.108
cutting width maximum (mm):
2.75
cutting width minimum (inch):
0.079
cutting width minimum (mm):
2
Execution:
RIGHT
For Groove Inserts:
GX 24-1
functional height (inch):
0.984
functional height (mm):
25
functional length (inch):
0.866
functional length (mm):
22
functional width (inch):
0.201
functional width (mm):
5.1
ISO Designation:
E25 R 21-GX 24-1
Item Height (inches):
0.59
Item Length (inches):
3.62
Item Quantity:
1
Item Weight (lbs):
0.093
Item Width (inches):
1.85
Material group K (H= Main Application, N= Secondar:
0
Material Number:
11350148
Parting off diameter max (inch):
2.953
Parting off diameter max (mm):
75
Product Line:
CERATIZIT_PERFORMANCE
Product name:
MODULARCLAMP_MSS
shank height (inch):
1.181
shank height (mm):
30
Manufactured By:
Ceratizit
