Part Number: 70897120 / Vendor ID Number: 1150641 / Custom:

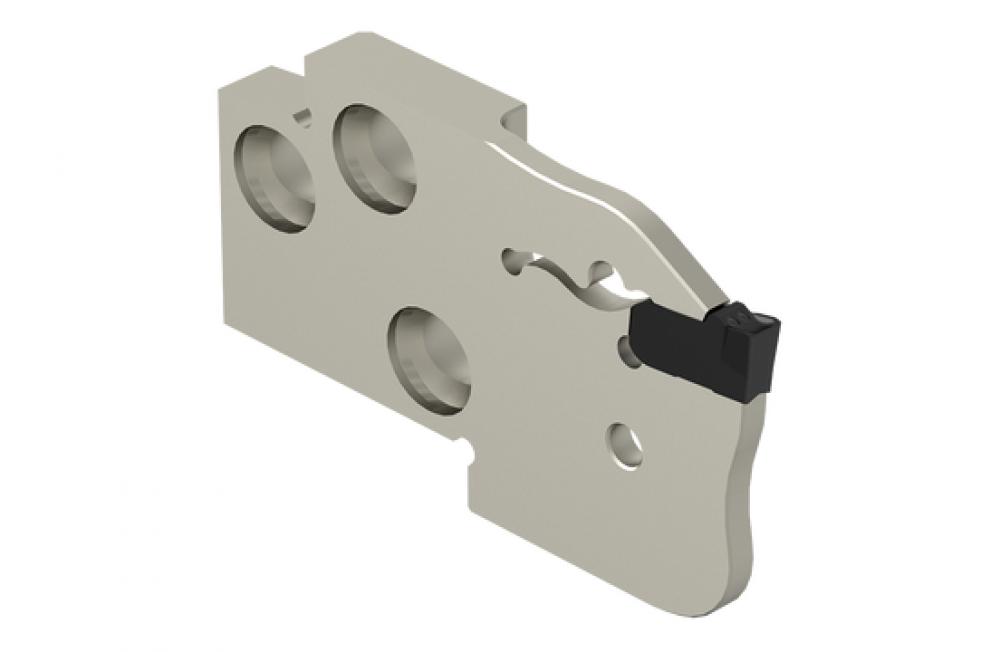

MODULAR CLAMP MSS EXT. GROOVE MODULE SX

MODULAR CLAMP MSS EXT. GROOVE MODULE SX
by Ceratizit

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
MSS-E20L20-SX3
MODULAR CLAMP MSS EXT. GROOVE MODULE SX MSS-E20L20-SX3
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
DXF
Technical Details
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Holders
Brand Name:
CERATIZIT
cutting depth maximum (inch):
0.787
cutting depth maximum (mm):
20
cutting width (inch):
0.118
Cutting Width (mm):
3
Execution:
LEFT
For Groove Inserts:
SX .3..
functional height (inch):
0.787
functional height (mm):
20
functional length (inch):
0.866
functional length (mm):
22
functional width (inch):
0.126
functional width (mm):
3.2
ISO Designation:
E20 L 20-SX3
Item Height (inches):
0.59
Item Length (inches):
3.62
Item Quantity:
1
Item Weight (lbs):
0.106
Item Width (inches):
1.85
Material group K (H= Main Application, N= Secondar:
0
Material Number:
11459223
Overall length (inch):
1.654
overall length (mm):
42
overall width (inch):
0.175
overall width (mm):
4.45
Parting off diameter max (inch):
2.362
Parting off diameter max (mm):
60
Product Line:
CERATIZIT_PERFORMANCE
Product name:
MODULARCLAMP_MSS
shank height (inch):
0.945
shank height (mm):
24
shank width (inch):
0.173
shank width (mm):
4.4
Manufactured By:
Ceratizit
